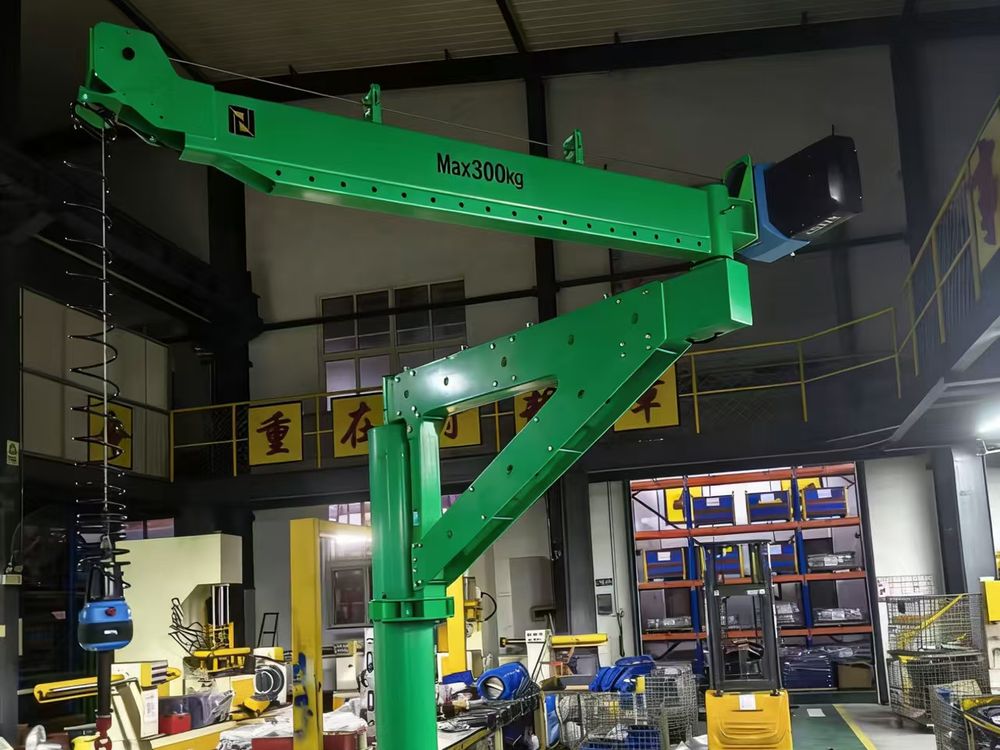

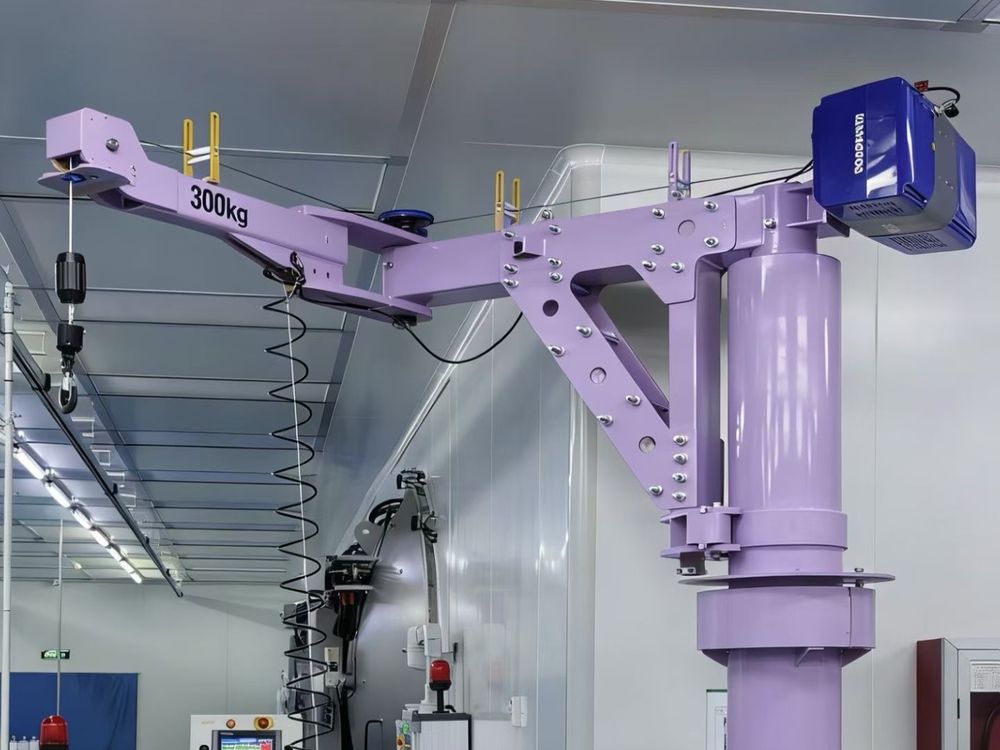

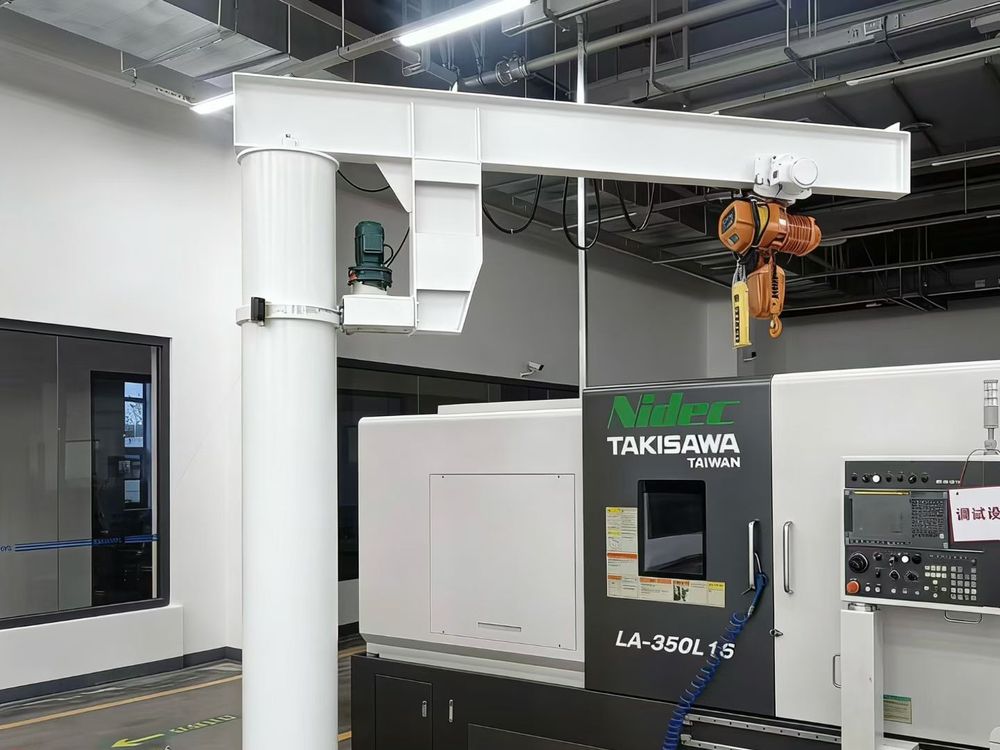

Jib cranes — pillar & wall mounted
A slewing jib on a floor column or wall bracket lifts stations and line-side points inside a radius the main crane cannot justify. In the European framework, light jib systems are referenced to EN 16851 — documentation aligned to your destination is agreed per order.
| Parameter | Reference * |
|---|---|
| Mounting | Floor pillar / wall bracket |
| Slew range | 180° / 270° / 360° (typical) |
| Capacity | per column & jib design — TBD with order |
| Hoist | Electric chain or wire-rope, or manual |
Electric hoists (wire-rope ranges)
| Parameter | Reference range * |
|---|---|
| Rated capacity | 0.5–10 t |
| Lift height | 6–30 m |
| Types | CD1 (single speed) / MD1 (dual speed) ranges |
| Duty | Standalone, monorail trolley, or crane duty |
The hoist is the component your crane's reliability actually lives in. Changyuan's component ecosystem gives us fast access to hoist units and their parts — for standalone use, as replacement units, or as the lifting gear of the cranes we build.
Self-manufactured vs. sourced units are confirmed per order — we state it explicitly on the quotation rather than assume.
Electric flat cars & lift platforms
Electric flat cars
Rail-mounted transfer cars move heavy workpieces and pallets between bays where a crane path doesn't reach. Load capacity and deck size are engineered per order — capacities TBD on request.
Power options (battery, cable drum, rail conductor) selected per duty cycle and travel length.
Lift platforms & freight lifts
Hydraulic scissor platforms and guide-rail freight lifts for vertical material flow between floors and pits — sized per shaft/platform dimensions on request.
Safe working load, platform size and travel are confirmed from your shaft drawings.
Crane spare parts from the cluster
Wheel assemblies
Long-travel wheels, bogies and shafts for crane and gantry service.
Drum assemblies
Rope drums with grooving matched to your hoist's rope and block.
Hook blocks
Forged hooks and matched blocks; safety-latch configurations per order.
Couplings & shafts
Drive-train couplings, gears and transmission components.
Send the part number, photos or the old sample — we confirm interchangeability before quoting. Request a parts quote →
Hooks & lifting clamps
Vertical plate clamps
Vertical lift of steel plates and sections from the stack — single or paired for long plates.
Horizontal plate clamps
Turn and flip plates flat, or carry them horizontally in pairs with a spreader setup.
Drum & rail clamps
Drum handlers for barrels and rail clamps for rail sections and profiled material.
Stone & special clamps
Stone slabs, pipes and round sections — clamp jaws matched to the material and finish.
Grade-80 sling hooks and hardware, latch-fitted as standard, matched to your hoist or sling chain. Rigging ships as a documented line item with any crane or hoist order — capacities and certificates confirmed per shipment. Request a rigging quote →
Light systems, quoted as fast as the big ones.
Jib radius, hoist capacity, car load or platform travel — we take it from there.
